New generations of microgels comprising multiple properties

Domain Security

Technology Metaomic

Challenges

The formation of microgels could be complex.

Spontaneous self-assembly in cohesive/self-supported films (on skin).

Encapsulation and release are the challenges to ensure an efficient delivery and the penetration of compounds through the primary skin barrier.

Innovative solution

The invention relates to a method of preparing and using the on-demand microgel compositions/functionality. These versatile process and new generation of microgels are able to overcome the current challenges regarding formation, penetration, encapsulation and release.

APPLICATIONS

  • Cosmetic

  • Medical device

  • Pharmaceutical

  • Mechanical sensor

COMPETITIVES ADVANTAGES

  • Film formation on any substrate: glass, skin, etc.

  • Strong film cohesion even when submerged

  • Adhesion in humid environment

  • Facilitated encapsulation / Nature of the active ingredient (hydrophobic, hydrophilic, peptide, biomacromolecules)

  • Controlled release of active molecules (pH, T °, hydrophobicity, etc.)

  • Mechanoelectric stimulus

DEVELOPMENT STATUS

  • 4 generations of functional microgels and their homologues in films

  • Biodegradable microgels underway

  • Fully biobased biodegradable microgels to be done

How it works

New generations of microgels behave as soft micro-sponges with high functionalities due to the versatility of the waterborne chemical process to prepare them.

Compared to macroscopic gels, microgels are defined by singular physico-chemical properties. Microgels are environmentally responsive cross-linked colloidal particles able to form stable aqueous colloidal dispersions, swell rapidly in a thermodynamically good solvent and respond to external stimuli (temperature, pH, ionic strength...). In addition, the microgels’ surface area is by far larger than macroscopic gels’ one increasing the area of the electrical double layer. What is more, these colloidal systems present an extraordinary ability to contain therapeutic molecules, such as hydrophobic & hydrophilic molecules, or even macromolecules, due to their sponge’s structure and release them in solution by changing their volume.

Indeed, the design & control of the microgels morphologies tend to well-control their swelling/deswelling ability to encapsulate/release active ingredients by tuning the nature of the interactions (VdW, electrostatic, steric hindrance …).

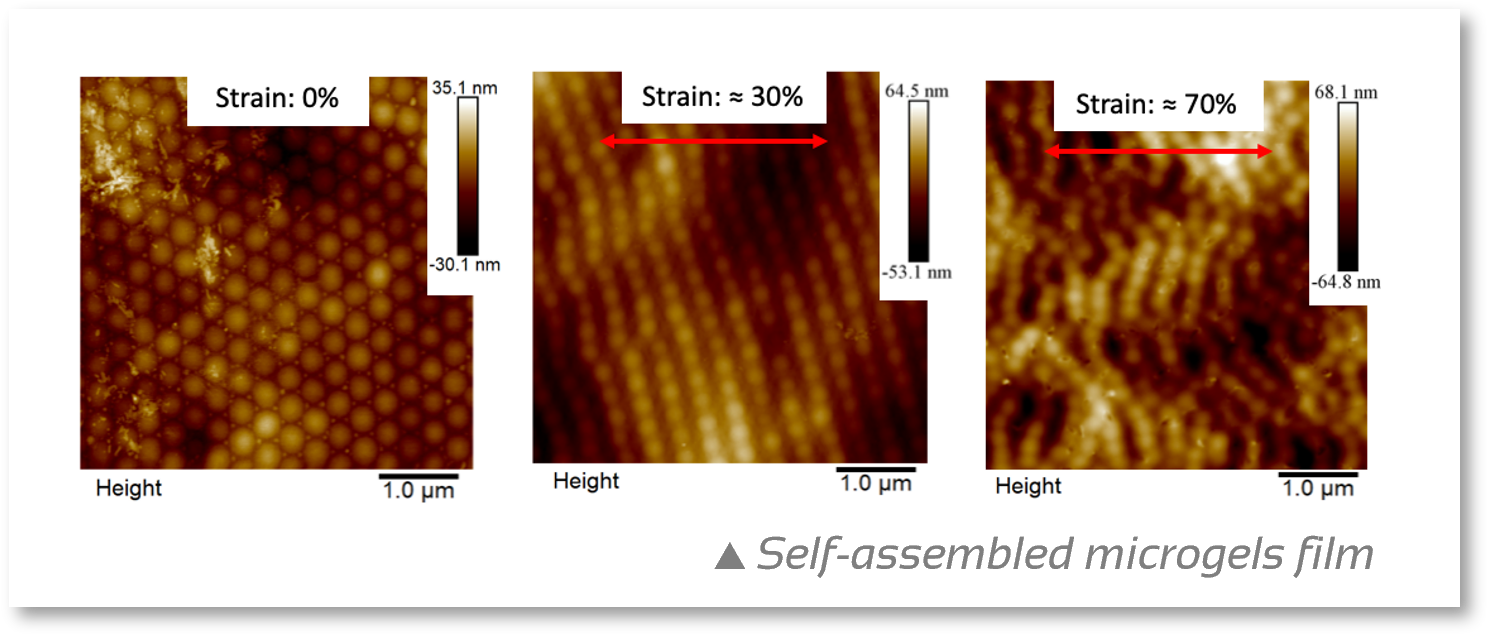

The success of the challenge of stabilizing self-assembled microgel films” SAMFs requires the combination of two opposite phenomena. The colloidal stability of microgel particles and hence, their individual state, is originated from electrostatic repulsive forces with their additional solvation forces between microgel particles to allow their assembly and avoid their post-dispersion in contact with water. In this sense, many efforts have been made to stabilize highly hydrophilic self-assembled microgels films by the creation of electrostatic or covalent interactions between particles, requiring catalytic conditions, successive steps/long-period casting to induce efficient microgels self-cross-linking. Such conditions may be harmful for humans being not suitable for epidermal applications where the spontaneous and in situ film-formation is required. Herein, the tuning of the microgels outer shell, i.e. hairy shell, permits to self-assemble the microgels by water evaporation (i.e. skin temperature or higher) into cohesive/self-supported films with mechanical strength & mechano-electrical.

IP CHARACTERISTICS

IP

Title

Advantages

15703307.7

WO 2016/110615

Process of care or make up using poly(ethylene glycol) methacrylate microgels

Process for the formation of biocompatible microgels (thermosensible and ph-responsiveness) that can incorporate active ingredients.

These microgels show very advantageous optical and electromechanical properties.

17196940.5

PCT/IB2018/001212

Microgels for the delivery of cosmetic active organic substances

Enhancement of the encapsulation/release of the microgels

FR1913338

Microgels and their photonic applications and stimulable interference

Original color effects which can be alternative or complementary to those of conventional pigments and dyes

FR1914550

FR1914551

Composition or medical device comprising oligo(ethylene glycol)-based polymers

New way of modulating the mechanical properties of films that are intended to be applied to the mucous membranes or to the skin.

US201962855687P

PCT/US2020/035378

Mucoadhesive microgel compositions and methods for using the same

Mucoadhesive microgel compositions for therapeutic applications

EP21305379.6

Conductive stimuli-responsive colloidal microgels and their film homologues: Synthesis using catechol groups as crosslinking and doping agents, and
mechano-electrical properties

Mechano-electrical films obtained from mucoadhesive conductive microgels waterborne dispersion

Inventors

Developed by Laurent Billon: IPREM (UPPA, CNRS)

IP

5 patent families

  • 15703307.7 - WO 2016/110615 : Process of care or make up using poly(ethylene glycol) methacrylate microgels.
  • 17196940.5 - PCT/IB2018/001212 : Microgels for the delivery of cosmetic active organic substances.
  • FR1913338 : Microgels and their photonic applications and stimulable interference.
  • FR1914550 - FR1914551 : Composition or medical device comprising oligo(ethylene glycol)-based polymers.
  • US201962855687P - PCT/US2020/035378 : Mucoadhesive microgel compositions and methods for using the same.
  • EP21305379.6 : Conductive stimuli-responsive colloidal microgels and their film homologues: Synthesis using catechol groups as crosslinking and doping agents, and mechano-electrical properties.
